| Place of Origin: | China |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | C3030HF/HM-2*NP |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Packed in PE bag or tray packaging firstly, and then into cartons, cardboard and waterproof bag added around the door |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 500,000set per month |
| Product Name: | C3030HF/HM-2*NP | Application: | Power |
|---|---|---|---|
| Size Of Pitch: | 3.0mm | Row: | Dual |
| The Number Of Pin: | Single:02 To 12 Pin Dual :2*1 To 2*12 | Material: | HSG: PA66 TER: Phosphor Bronze, Tin-plated |
| Environmental Protection Class: | ROHS/Reach/ Halogen Free(HF) | Fire –protection Rating: | UL94-V0/UL94-V2 |
| Highlight: | Crimp Terminal Connector,Connector Crimp Terminal |
||
Female housing Wire to wire Connector Pitch 3.0mm for power dual Row
5. introduction
Pitch3.0mm, wire to wire and wire to board connector C3030series
| Specifications | Pitch Size | Pitch 3.0mm, | ||||
| Current rating | 3A AC, DC | |||||
| Voltage rating | 250V AC, DC | |||||
| Withstanding voltage | 500V AC/minute | |||||
| Contact resistance | 100 mΩ Min | |||||
| Temperature range | -25°C— 85°C | |||||
| Insulation resistance | 1000 mΩ Min | |||||
| Rated Current (Max.) And Applicable Wire | AWG#20 | 5A | AC/DC | |||
| Responsive Time | AWG#22 | 5A | AC/DC | |||
| Panel Life | AWG#24 | 4A | AC/DC | |||
|
Mechanical Performance
|
||||||
| Test Description | Procedure | Requirement | ||||
| Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | ||||
| Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#20 | 6.0kgf (Min.) | |||
| AWG#22 | 4.0kgf (Min.) | |||||
| AWG#24 | 3.0kgf (Min.) | |||||
| Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50kgf (Max.) | ||||
| Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 2.50kgf (Min.) | ||||
| Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.50kgf (Min.) | ||||
Description

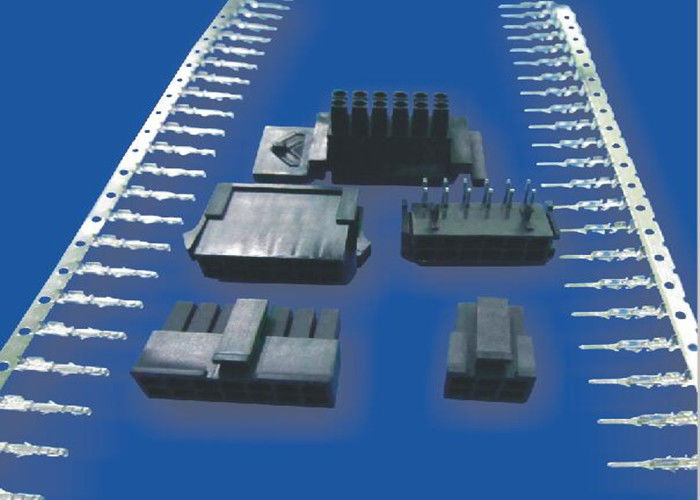

1, C3030series is divided into C3030HF-NP, C3030HM-NP(single row male/ female housing), C3030HMA-NP, (single row without lock female housing), C3030HMA-2*NP, (dual row without lock female housing,) C3030HF-2*NP, C3030HM-2*NP,(Dual row male, female housing), Terminal:C3030F-TPE -A(Used in C3030HF series housings)C3030M-TPE(used in C3030HM serieshousing). C3030WV-F-NP/C3030WV-F-2*NP(Mates with C3030HF series single/dual row housing, single/dual row with foot 180°straight needles DIP type wafer.) ,C3030WR-F-NP,C3030WR-F-2*NP, (Mates with C3030HF series single/dual row housing, single/dual row with foot 90°bended needles DIP type wafer.)
2, Housing used t raw materials: PA66 , Fire-protection rating :UL 94-V0. /UL94-V2,The color is black ;Minimum packing quantity is 1000pcs/bag.
3. Single row housing we have: 2pins to 12pins,Dual Housing :from 2*01Pins to2*12pins;This product we have four molds and we can produce 20—30KPCS of this product every day.
4. Terminals are stamped by Phosphor Broze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we callingC3030F-TPE-A or C3030M-TPE, Gold-plated we callingC3030F-GPE -Aor C3030M-GPE,Minimum packing quantity is 10,000pcs/Reel. We can produce them with Brass if you have this requirement. The daily production capacity is 200 to 300 KPCS.
5. Terminals' wire range :AWG #20--#24,insulation OD is1.85mm(Max).If you have special requirements in riveting wire aspect, we’ll try to help you solve it.
6. There are two kinds of wafers in C3030 series for wire to board connecting : C3030WV-F series and C3030WR-F series, The number of pin :02P to 12P, 2*01P to 2*12P.The gluey shell’s material is PBT, UL94-V0.The pins are brass, Tin-plated.
Applications
Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board.
