| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A1253HA-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 500 K pcs per month |
| Color: | White | Pitch: | 1.25mm |
|---|---|---|---|
| Material: | PA66 | Wire Range: | AWG26# To 32# |
| Flammability: | UL94V-0 | Row: | Single |
| Highlight: | Connector Wire To Board,Board To Wire Connectors |
||
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Suitable terminals | A1253T-A series | ||
| Suitable wafer | A1253WRA series | ||
| Pitch | 1.25mm | ||
| Mating lock | with | ||
| Connector orientation | straight | ||
| Circuits | 2pins to 30pins | ||
| Wire Insulation Diameter | 1.00mm Max. | ||
| Connector type | socket | ||
| Terminals material | phosphor bronze, tin-plated or gold-flash finish | ||
| Electrical properties | |||
| Current Rating | 1A AC, DC | ||
| Voltage Rating | 150V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 500mΩ min | ||
| Withstanding Voltage | 500V AC/minute | ||
| Mechanical properties | |||
| Operating Temperatureemperature range | -25℃ to 85 ℃ | ||

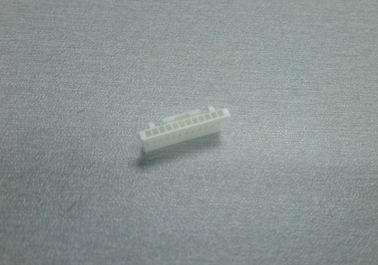

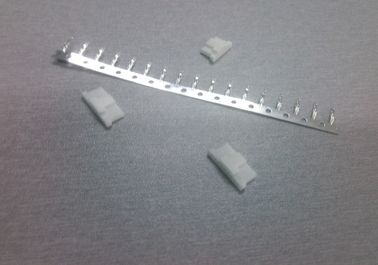

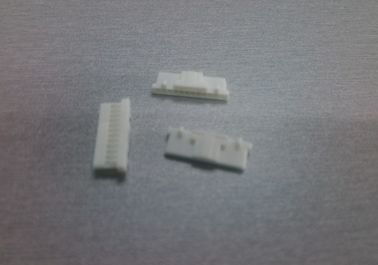

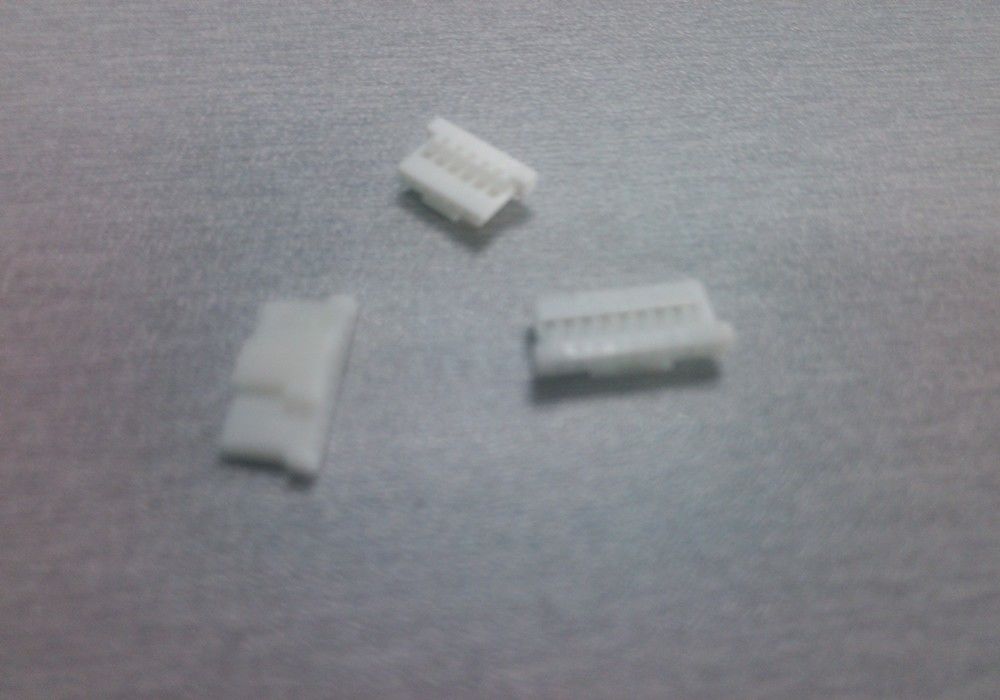

| Other information please kindly check the following picture. | |||
2, Related drawing and report
3, Application fied of these product
This product is developed for PDP, LCD or small electronics equipment.This product are widely used in household appliance, computer, communication device. Because we can controll NPL ratio under a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
4, we can offer various fast delivery way for you .
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
